MAZAKI MAC SERIES
MAZAKI MAC SERIES AUTOMATIC PUMP CONTROL
• Use for all household water system
• Control the pump to run a constant flow
• The electronic controller orders the automatic start and stops of the water pump when opening or closing any tap or value of the system
• Completely replaced traditional pump control system composed of the pressure switch, pressure tank, check valve, etc.
• Adjustable starting pressure
• Water shortage protection
• Automatic restart in case of water failure
• Water pump impeller jammed protection
• Pipeline leakage protection
• Flow switch jammed protection
MAZAKI MAC02A
Power Source: 220V - 240V
Frequency: 50 / 60 Hz
Max Current: 10A
Starting Pressure: 1.5 bar
Max. Working Pressure: 10 bar/125 psi
Max. Working Temperature: 60°C / 140°F
Connections: 1" Male
Protection Level: IP65

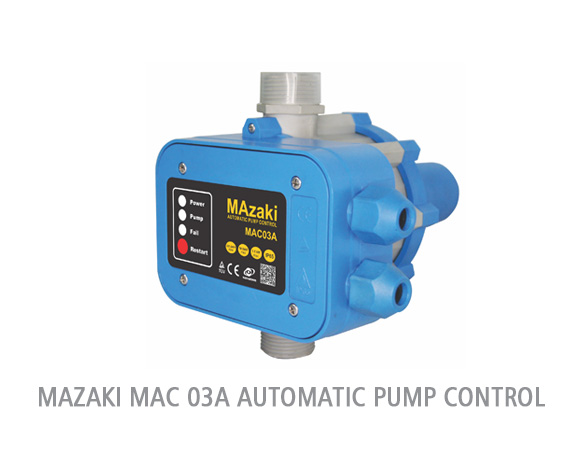

MAZAKI MAC03A
Power Source: 220V-240V 50/60Hz
Max Current: 10A
Operating Pressure Range: 1.5 bar /14.5-50, 65psi
Max Allowable Pressure: 10 bar / 125 psi
Max. Liquid Temperature: 55° C / 130° F
Max. Flow Rate: 80 l/min
Connections: 1" Male
Protection Level: IP65

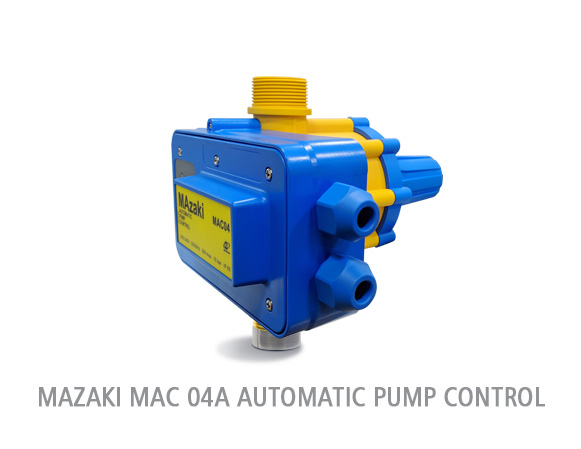

MAZAKI MAC04A
Power Source: 220 - 240V
Frequency: 50 / 60 Hz
Max Current: 30A
Starting Pressure: 1.5 - 3.0 bar
Max. Working Pressure: 10 bar / 125 psi
Max. Working Temperature: 60°C / 140°F
Connections: 1 1/4” GSA male
Protection Level: IP65
