FLECK SED./SOFT. CONTROL VALVES

FLECK 2750 SEDIMENT/SOFTENER

TECHNICAL DATA

Inlet/outlet 1” NPTM
Drain 3/4" NPTM
Base 2-1/2" -8NPSM
Riser Pipe 1.05" OD
Brine Line Connector 3/8" & 1/2”
Continuous Flow Rate 26 gpm
Max Backwash 25 gpm
Hydrostatic Pressure 300 psi
Working Pressure 20-125 psi
Temperature 34 -110 OF
Tank Diameter Range for Softeners 10" ~ 24"
Tank Diameter Range for Filters 10" ~ 21"

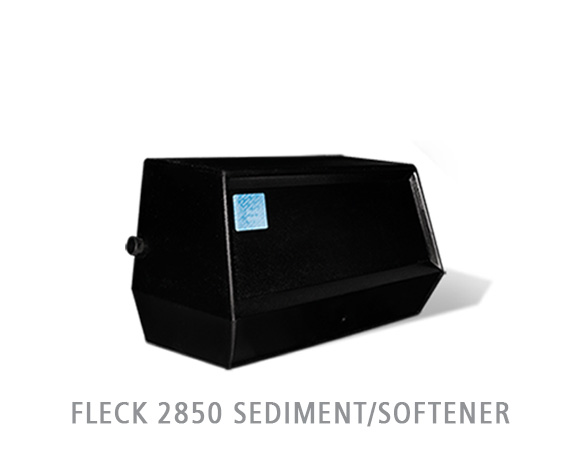

FLECK 2850 SEDIMENT/SOFTENER

TECHNICAL DATA



Inlet/outlet 1-1/2" NPTF
Drain 1" NPTM
Mounting Base 4" -8UN
Riser Pipe 1-9/10" OD
Brine Line Connector 3/8" & 1/2"
Continuous Flow Rate 51 gpm
Max Backwash 49 gpm
Hydrostatic Pressure 300 psi
Working Pressure 20-125 psi
Temperature 34 -110 ^oF

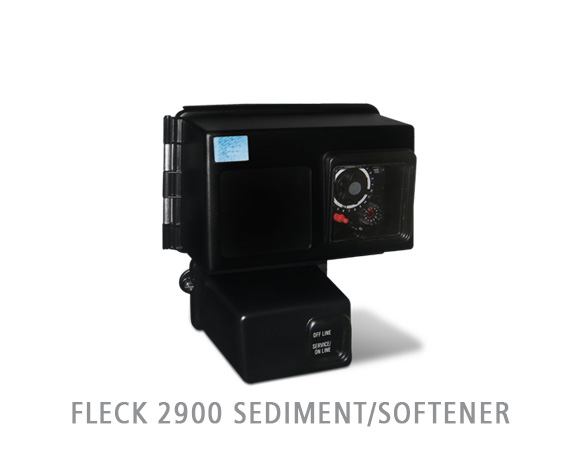

FLECK 2900 SEDIMENT/SOFTENER

TECHNICAL DATA


Inlet/outlet 2"
Drain 1" NPTM
Base 4" -8UN
Riser Pipe 1.5" pipe I.D.
Continuous Flow Rate  106 gpm
Backwash 36 gpm
Hydrostatic Pressure 300 psi
Working Pressure 20-125 psi
Temperature 34 -110 OF
Tank Diameter Range for Softeners 14" ~ 36"
Tank Diameter Range for Filters 14" ~ 30"


FLECK 3150 SEDIMENT/SOFTENER

TECHNICAL DATA

Inlet/outlet 2" NPTF
Drain 2" NPTF
Base Top mount 4" -8UN
Riser Pipe 2" pipe I.D.
Brine Line Connector 1" NPTM
Hydrostatic Pressure 300 psi
Working Pressure 20-125 psi
Temperature 34 -110 OF
Continuous Flow Rate     95 gpm (top mount)
                                        100 gpm (side mount)
Backwash      105 gpm (top mount)
                      109 gpm (side mount)

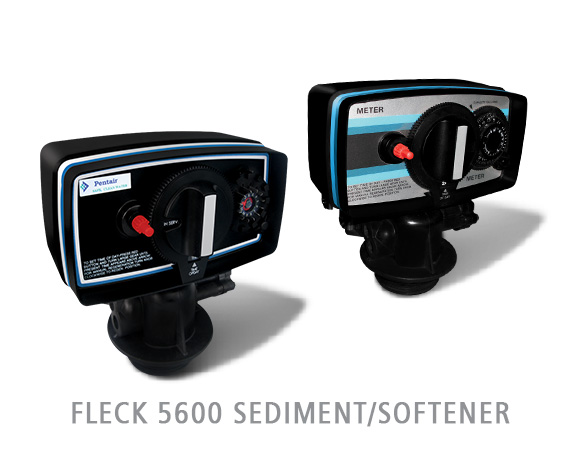

FLECK 5600 SEDIMENT/SOFTENER

TECHNICAL DATA

Inlet/outlet 3/4", 1", 1-1/4"
Drain 1/2" NPTF
Base 2 1/2" -8NPSM
Riser Pipe 1.05" OD
Brine Line Connector 3/8"
Continuous Flow Rate 20 gpm
Backwash 7 gpm
Hydrostatic Pressure 300 psi
Working Pressure 20-125 psi
Temperature 34 -110 OF
Tank Diameter Range for Softeners 6" ~ 12"
Tank Diameter Range for Filters 8" ~ 10"
Note: Stocks are U.S.A. and China made
