Y SERIES

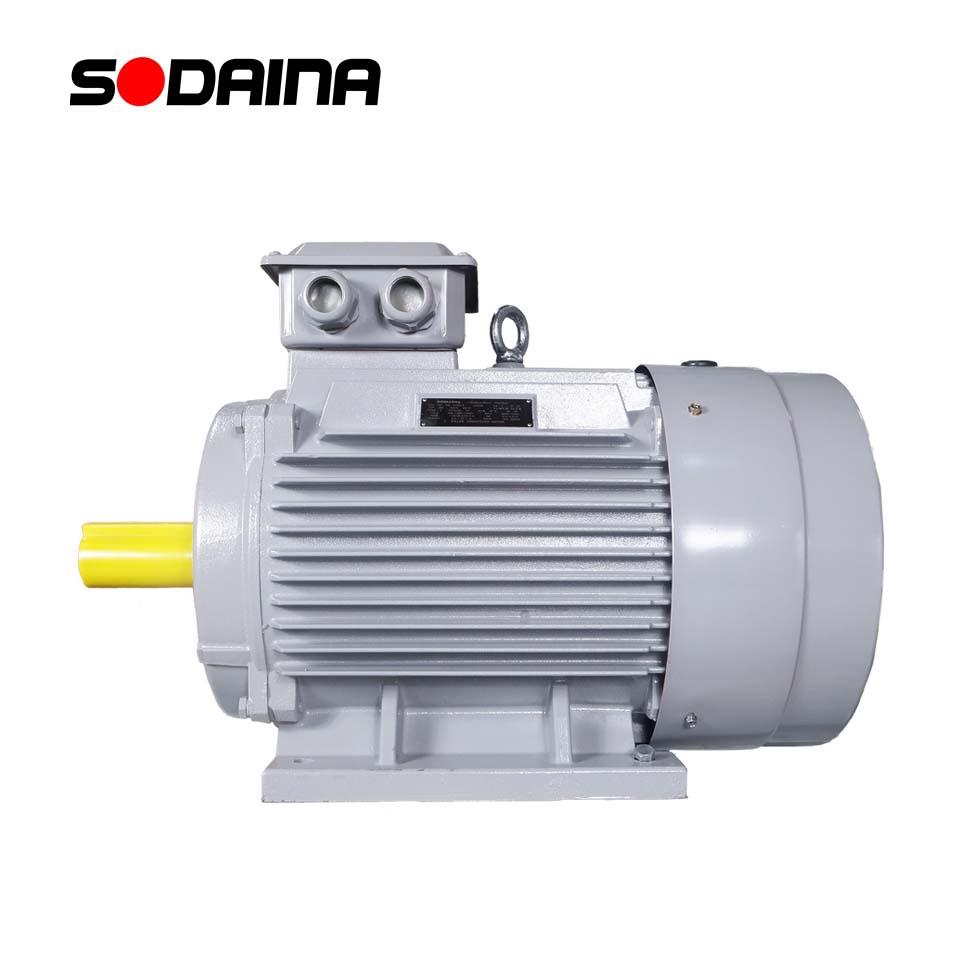

THREE-PHASE INDUCTION MOTOR
Performance range
Ambient temperature: -15°C ≤ 0 ≤ 40°C
Altitude: not exceeding 1000m
Rated voltage: 60Hz
Protection class: IP55
Insulation method: F
Cooling method: ICO141
Duty: S1 (Continuous)
Connection: Star connection for up to 3kW. delta-connection for 4kW and above.
Y SERIES (IE2)
-
Y series motor system is a low voltage three-phase asynchronous motor, which belongs to the basic series with comprehensive functions. This series is in line with domestic and industrial standards.
-
Requirements for the 80-315 range external seat and new products designed according to national unified standards.
-
Y series has high efficiency, energy-saving, good operation, low vibration, low noise, long service life, and high reliability.
-
Easy maintenance, installation size, and power level fully meet IEC standards.
-
The series adopts B insulation grade and IP55 shape protection.
-
Y series connection method is 3kW and the following specifications are Y connection method, 4kW, and the above specifications are “delta” connection method.
-
Y motor is widely used in all kinds of mechanical transmission equipment without special requirements.
Appearance and mounting dimensions
