AW-305
Addressable Manual Call Point
The AW-D305 is an addressable manual call point (MCP) used to manually trigger a fire alarm in an intelligent fire safety system. It is designed for use with Asenware's addressable control panel, the AW-FP300.
Key Features
- Resettable Operation: Unlike traditional break-glass units, the AW-D305 features a resettable plastic lever that can be restored using a special key after activation. This makes it more cost-effective and safer for testing and maintenance.
- Point-Addressable Reporting: It has a unique electronic address, allowing the fire alarm control panel to identify the exact location of the manual trigger. This enables precise and rapid emergency response.
- Status Indicator: A built-in red LED clearly indicates the unit's status. The LED blinks in normal operation and remains steady on when the alarm has been activated.
- Easy Installation: The unit features a two-wire, non-polarized wiring for simple connection to the loop. It also supports both semi-flush and surface mounting
- Built to Standards: It is manufactured in compliance with the latest EN standards and holds LPCB certification for fire safety, ensuring its reliability.

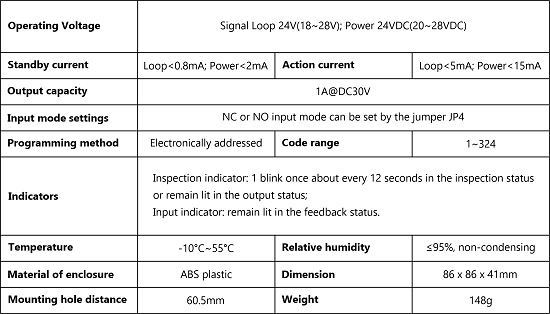

Technical Specifications
Certification: LPCB (Loss Prevention Certification Board)
Standard: EN54-11
