AW-FP300

Core Specifications and Capacity

• System Type: Addressable Fire Alarm Control Panel.
• Loop Capacity: Supports 1 loop with up to 324 addressable points.
• Zones: Provides control and indication for 32 zones.
• Power Supply: Operates on a mains supply of 230VAC (-15%,+10%) with a battery backup. The maximum battery supply current is 4A when mains power is disconnected.
• Certification: Holds LPCB and CE certifications, indicating compliance with international safety and performance standards.

Key Features

• User Interface: Equipped with a 4.3-inch color LCD screen and a key lock for anti-tamper protection.
• Event Logging: Can store up to 1000 historical events for fire, fault, and operation logs.
• Onboard Printer: Features an integral printer for real-time event documentation.
• Programming: Enables flexible, intuitive cause-and-effect programming directly from the front panel.
• Connectivity: Includes a U-disk interface for easy configuration and data backup.
• Network Capabilities: Supports CAN bus for interconnecting up to 20 panels and RS-485 for connecting up to 30 fire-indicating panels.

Inputs and Outputs

The panel offers a variety of inputs and outputs for system integration:

• Outputs: Includes a programmable conventional sounder circuit, fire protection equipment (F.P.E.) output, fire alarm (F.A.) output, and a fault output relay
• Communication: Features both CAN bus and RS-485 for networking with other panels and devices
• Loop Type: Supports a Class A loop configuration

Additional Information

• Application: It is used for monitoring input signals (like from smoke detectors), providing visual and audible indications, and activating outputs like alarms or fire suppression systems as programmed.
• Access Levels: Has a three-level hierarchy management system for access control.
• Testing: Includes features for zone test, point test, and module start/stop testing to facilitate commissioning.

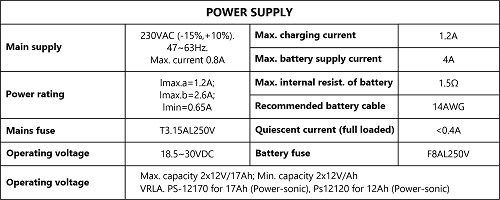

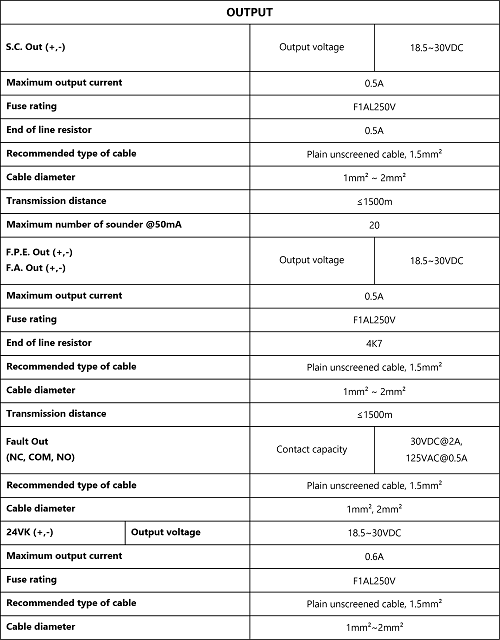

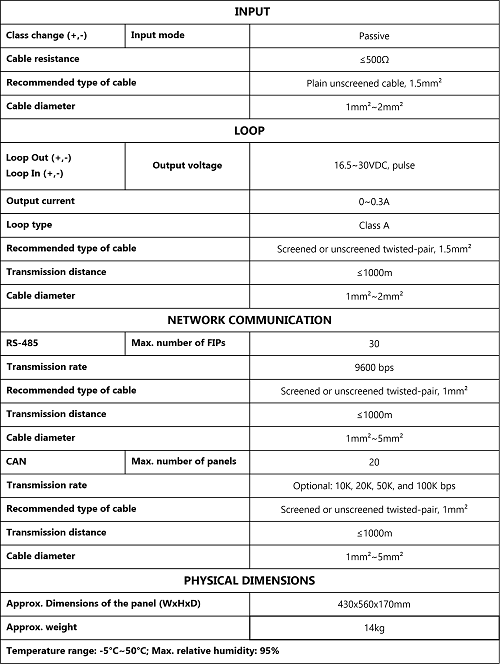

Technical Specifications
